Third Coast Equipment

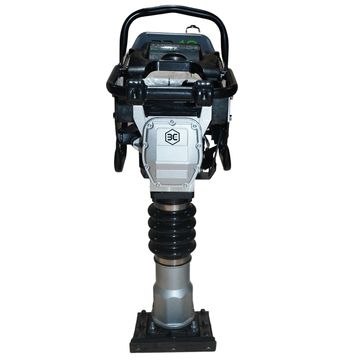

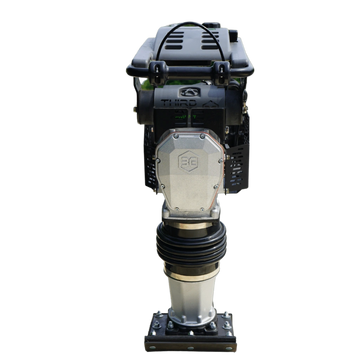

Weight & Dimensions

• Weight 123 lbs
• Overall Width 13.8 in
• Overall Length 24.5 in
• Overall Height 43.7 in

Performance Data

• Shoe Size 11 x 13 in
• Blows Per Minute Max 699 bpm
• Shoe Jump Height 2.2 in
• Impact Force 1215 lbf

Engine

• Manufacturer HONDA
• Model GRX120
• Output Power 4 hp
• Fuel Tank Capacity 0.52 gal

Weight & Dimensions

• Weight 149 lbs
• Overall Width 17 in
• Overall Length 28.5 in
• Overall Height 40 in

Performance Data

• Shoe Size 11 x 13 in
• Blows Per Minute Max 695 bpm
• Shoe Jump Height 3.3 in
• Impact Force 2922 lbf

Engine

• Manufacturer HONDA
• Model GRX120
• Output Power 4 hp
• Fuel Tank Capacity 0.74 gal

Weight & Dimensions

• Weight 158 lbs
• Overall Width 17 in
• Overall Length 30 in
• Overall Height 40 in

Performance Data

• Shoe Size 13 x 11 in
• Blows Per Minute Max 680 bpm
• Shoe Jump Height 3.1 in
• Impact Force 3147 lbf

Engine

• Manufacturer HONDA
• Model GRX120
• Output Power 4 hp
• Fuel Tank Capacity 0.74 gal

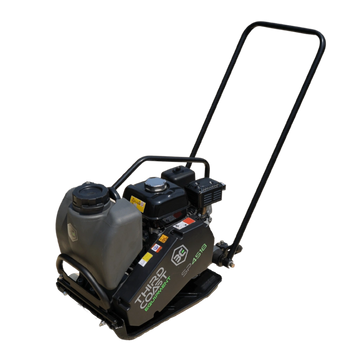

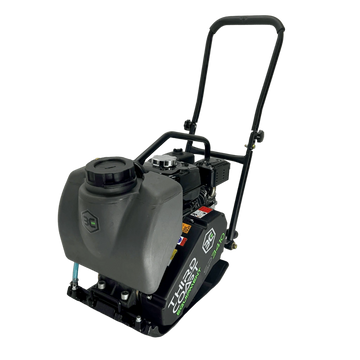

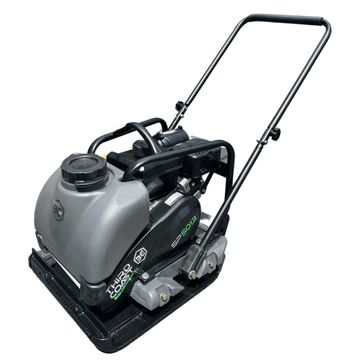

Performance Data

• Operating Weight 143 lb
• Base Plate Material Cast Iron
• Centrifugal Force 2248 lbf
• Vibration Frequency 5400 vpm
• Travel Speed 72 ft / min

Engine

• Manufacturer Vanguard / Honda
• Engine Model 200 / GX160
• Output Power 6.5 hp / 5.5 hp

Performance Data

• Operating Weight 198 lb
• Base Plate Material Cast Iron
• Centrifugal Force 2923 lbf
• Vibration Frequency 5500 vpm
• Travel Speed 96 ft / min

Engine

• Manufacturer Vanguard / Honda
• Engine Model 200 / GX160
• Output Power 6.5 hp / 5.5 hp

Performance Data

• Operating Weight 212 lb
• Base Plate Material Cast Iron
• Centrifugal Force 4046 lbf
• Vibration Frequency 5400 vpm
• Travel Speed 106 ft / min

Engine

• Manufacturer Vanguard / Honda
• Engine Model 200 / GX160
• Output Power 6.5 hp / 5.5 hp

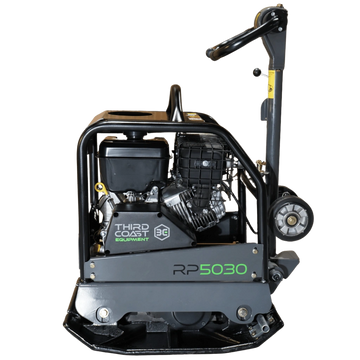

Weight   & Dimensions

• Weight 364 lb
• Base Plate Length 27 in
• Base Plate Width 20 in
• Overall Length 48 in
• Machine Height 33 in
• Handle Height 43 in

Performance Data

• Base Plate Material Cast Iron
• Centrifugal Force 6774 lbf
• Vibration Frequency 5400 vpm
• Travel Speed 66 ft/min

Engine

• Manufacturer VANGUARD
• Model 400
• Output Power 14 hp

Weight   & Dimensions

• Weight 660 lb
• Base Plate Length 34 in
• Base Plate Width 23 in
• Overall Length 58 in
• Machine Height 38 in
• Handle Height 47.5 in

Performance Data

• Base Plate Material Cast Iron
• Centrifugal Force 8992 lbf
• Vibration Frequency 4140 vpm
• Travel Speed 80 ft/min

Engine

• Manufacturer VANGUARD
• Model 400
• Output Power 14 hp

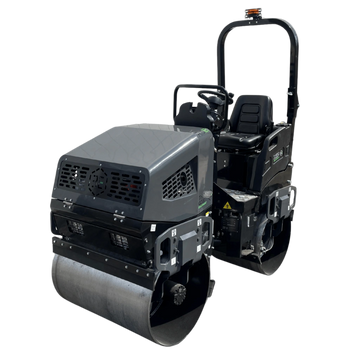

Weight   & Dimensions

• Operating Weight 2750 lb
• Overall Width 39.4 in
• Overall Length 79.1 in
• Overall Height 90.5 in
• Curb Clearance (Right) 14 in
• Curb Clearance (Left) 15 in
• Turning Radius (Outer) 126 in

Performance Data

• Vibration Frequency 3900 vpm
• Vibration Aplitude 0.02 in
• Centrifugal Force 3825 lbf
• Travel Speed w/Vibration 5 mph
• Gradeability Maximum 30%
• Water Tank Capacity 31.7 gal
• Drum Diameter 24.4 in
• Drum Width 35.4 in
• Drum Thickness 0.4 in

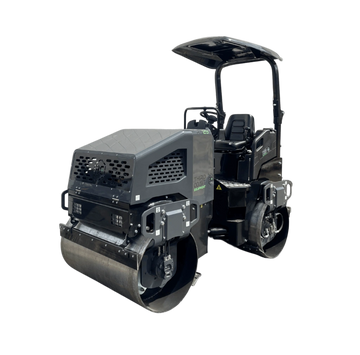

Weight   & Dimensions

• Operating Weight 6115 lb
• Overall Width 51.6 in
• Overall Length 98.2 in
• Overall Height 96.1 in
• Curb Clearance (Right) 20.1 in
• Curb Clearance (Left) 20 in
• Turning Radius (Outer) 196 in

Performance Data

• Vibration Frequency 3600 vpm
• Vibration Aplitude 0.02 in
• Centrifugal Force 8540 lbf
• Travel Speed w/Vibration 6 mph
• Gradeability Maximum 30%
• Water Tank Capacity 52.6 gal
• Drum Diameter 27.6 in
• Drum Width 47.2 in
• Drum Thickness 0.5 in

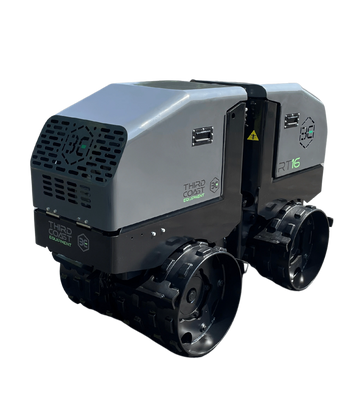

Performance Data

• Operating Weight 4035 lb
• Vibration Frequency 2520 vpm
• Centrifugal Force 15,300 lbf
• Travel Speed w/Vibration 0.8 –   1.5 mph
• Gradeability Maximum 50%
• Drum   Thickness .4”
• Remote Radio

Engine

• Engine Manufacturer Yanmar
• Engine Model 3TNV80F – Diesel
• Cooling liquid -cooled
• Number of Cylinders 3
• Output Power 20 HP
• Operating Speed 2400 rpm
• Fuel Tank Capacity 8 gal

Performance   Data

• Operating   Weight 7250 lb
• Drum   Width 48   in
• Vibration Frequency 2460 vpm
• Centrifugal Force 19,109 lbf
• Travel Speed w/Vibration 5.6 mph
• Gradeability   Maximum 55%
• Drive Hydrostatic

Engine

• Engine Manufacturer Yanmar
• Engine Model 4TNV88 – Diesel
• Cooling liquid-cooled
• Number of Cylinders 4
• Output Power 47 HP
• Operating Speed 2400 rpm
• Fuel   Tank Capacity 13.2   gal

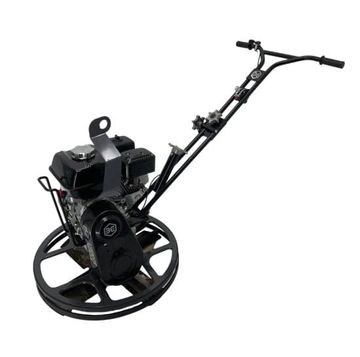

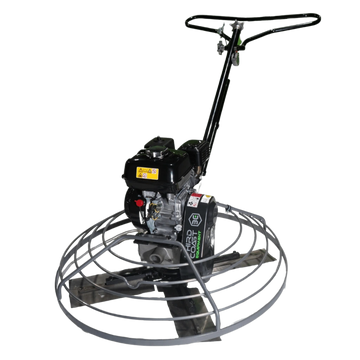

Performance Data

• Operating  Weight 110 lbs
• Number of Blades 4
• Blade Speed 80 – 150 rpm
• Troweling Diameter 24”

Engine

• Engine Manufacturer Honda
• Engine Model GX160
• Output Power 5.5 hp

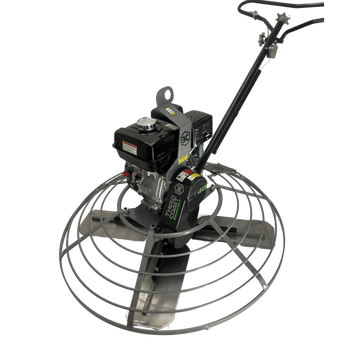

Performance Data

• Operating  Weight 176 lbs
• Number of Blades 4
• Blade Speed 80 – 150 rpm
• Troweling Diameter 36”

Engine

• Engine Manufacturer Honda
• Engine Model GX160
• Output Power 5.5 hp

Performance Data

• Operating  Weight 220 lbs
• Number of Blades 4
• Blade Speed 80 – 150 rpm
• Troweling Diameter 44”

Engine

• Engine Manufacturer Honda
• Engine Model GX270
• Output Power 8.4 hp
